optics lens CO2 ZnSe F-theta Scan Lens for 10.6um
Product Description
Features:
F-theta scan lenses play a major role in today’s leading-edge laser applications.JinShiDa manufactures scan lenses for CO2 laser systems that are used for marking, engraving, via hole drilling, and more.

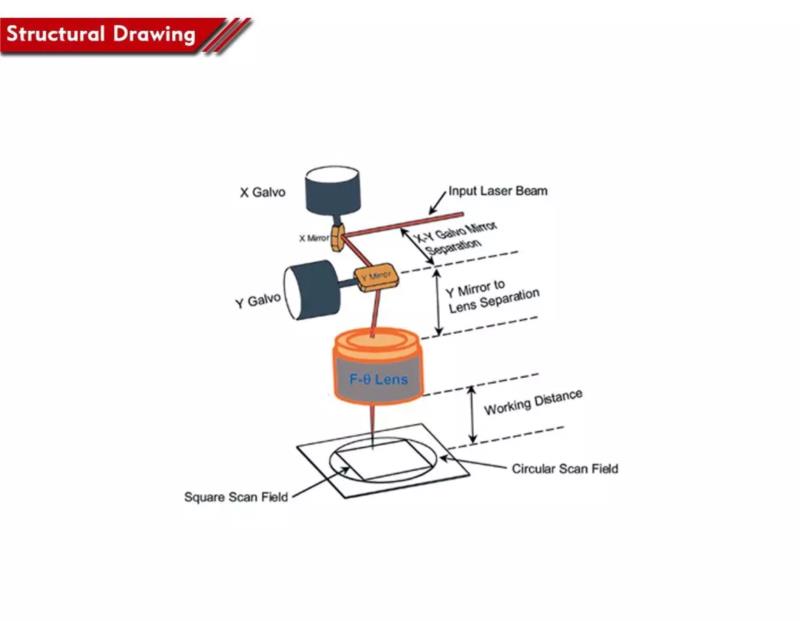

In a typical scan lens configuration, the F-theta lens is used with one or two axis galvo mirrors that enable the laser beam’s fast positioning and precision focusing.
More information:
| PartNo. | Material | Wavelength | Scan field | Focal length(mm) | Iputspot (mm) | Max angle of incidence(°) | Customized |
| JSD-LT01 | CVD/PVD ZnSe | 10.6um | 70x70 | 100 | 14 | 15 | YES |
| JSD-LT02 | CVD/PVD ZnSe | 10.6um | 110x110 | 160 | 14 | 20 | YES |
| JSD-LT03 | CVD/PVD ZnSe | 10.6um | 140x140 | 230 | 14 | 20 | YES |
| JSD-LT04 | CVD/PVD ZnSe | 10.6um | 175x175 | 250 | 14 | 20 | YES |
| JSD-LT05 | CVD/PVD ZnSe | 10.6um | 210x210 | 340 | 14 | 20 | YES |
| JSD-LT06 | CVD/PVD ZnSe | 10.6um | 300x300 | 400 | 14 | 20 | YES |
| JSD-LT07 | CVD/PVD ZnSe | 10.6um | 400x400 | 510 | 14 | 20 | YES |
| JSD-LT08 | CVD/PVD ZnSe | 1064nm | 70x70 | 100 | 12 | 28 | YES |
| JSD-LT09 | CVD/PVD ZnSe | 1064nm | 110x110 | 160 | 12 | 28 | YES |
| JSD-LT10 | CVD/PVD ZnSe | 1064nm | 175x175 | 254 | 16 | 28 | YES |
