curved 100w portable ETFE high efficiency 12v flexible solar panels

Packaging & Delivery

Packaging DetailsCARTON PACKAGING

7kg/ 2 pcs / carton carton size 120*60*5cm

curved 100w portable ETFE high efficiency 12v flexible solar panelsPortSHENZHEN/SHANGHAI

Product Introduction

curved 100w portable ETFE high efficiency 12v flexible solar panels

curved 100w portable ETFE high efficiency 12v flexible solar panels

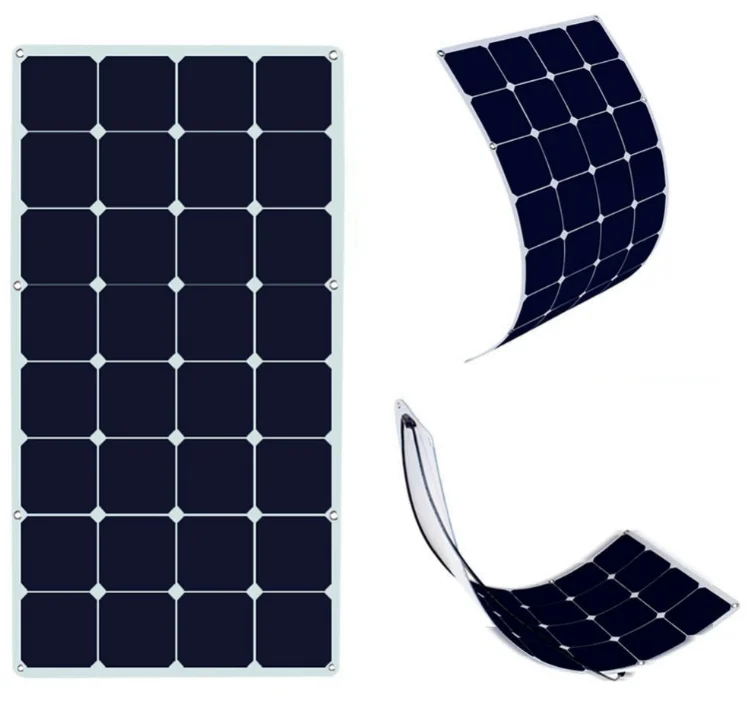

·Semi flexible: bending angle up to 30 degrees.

·Without frame, bendable, no glass

·Completely water proof

·Light weight 70% less than rigid solar panel for easy carrying

·The thickness only 2.5mm, easy joint to your RV roof

·Rounding corners to prevent hand from bending scratched

·High efficiency mono crystalline solar panel

Product Details Show

Product Spec

curved 100w portable ETFE high efficiency 12v flexible solar panels

1. Electrical Data:

1).Peak Power(Pmax): 108W

2).Maximum Power Voltage (Vmp): 17.6V

3).Maximum Power Current (Imp): 5.9A

4).Open Circuit Voltage (Voc): 20.77V

5).Short Circuit Current (Isc): 6.23A

6).Maximum System Voltage: DC 500V

7).Cell Efficiency: >22%

8).Power Tolerance: ±3%

9).Number of Cells: 32pcs

10).Operating Temperature: -20℃~+50℃

11).Storage Temperature: -20℃~+30℃

12).Temperature Coefficients of Isc(%): +0.09%/℃

13).Temperature Coefficients of Pmax(%): -0.37%/℃

14).Temperature Coefficients of Voc(%): -0.34%/℃

(International Standard Test Condition: AM=1.5,E=1000W/M2 ,Tc=25°C)

2. Mechanical Data:

1).Junction-Box: IP 65 Class With 2PCS Bypass Diode.

2).Thickness of ETFE: 0.025mm

3).Thickness of solar panel: 2.5~3mm(Custom)

4).Type of Solar Cells: American Sunpower

5).Eyelets: 4pcs (Custom)

6).Dmension:1050X540mmX3mm(Custom Size)

7).Junction Box Location:Front or Back-side

3.Widely Compatibility

curved 100w portable ETFE high efficiency 12v flexible solar panels

system for Boats/Sailboats,Yachts,Marin   applications,Motorhomes/RVs, Expedition Vehicles, Bus Station,

Commercial Trucks/Trailers, Caravans/Popup Off-Grid and Remote Communication sites and more

You can choose to ship the orders by your forwarders or we provide the solutions for you.

All is just for the best service you can experience.
