Chinese supplies Optical Fiber laser protection window

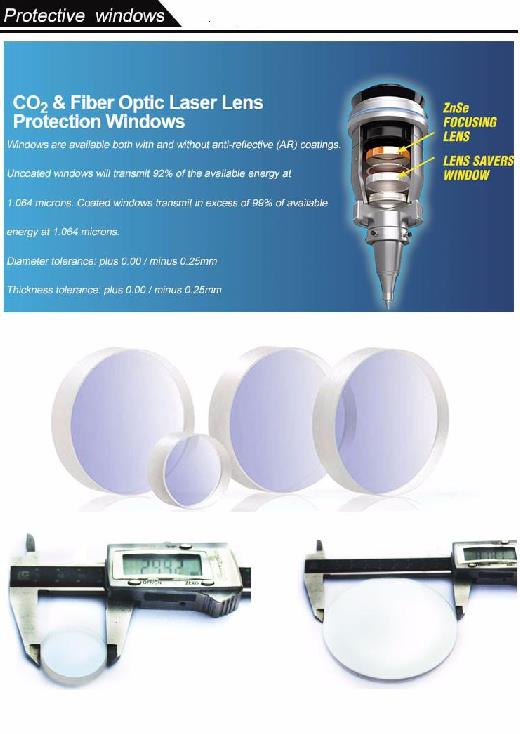

Protective Window


The 1064nm LASER PROTECTIVE MIRRORS is mainly used for blocking debris splashing in laser cutting, prevent splash from damaging the lens. Laser Lenses use specific substrates, coatings, commonly used materials are Fused silica, BK7(K9).

How to choose material?

Our available material is K9(CDGM), China Quartz, Imported quartz and we can provide as your sample.

0~300W, you can use K9 and Chinese JGS2;

300W-700W, you can use Chinese JGS1 and import quartz;

Above 2000W, we strongly recommend you use import quartz.

Windows detials

Model	Dia(mm)	Thick(mm)	Material	Wavelength(nm)	Customized
JSD-D20-T2	20	2	Quartz	1064	Y
JSD-D20-T3	20	3	Quartz	1064
JSD-D20-T5	20	5	Quartz	1064	Y
JSD-D22.35-T4	22.35	4	Quartz	950-1070
JSD-D25-T2	25	2	Quartz	950-1070	Y
JSD-D25-T3	25	3	Quartz	950-1070
JSD-D25.4-T4	25.4	4	Quartz	950-1070	Y
JSD-D25.4-T5	25.4	5	Quartz	950-1070
JSD-D27-T4	27	4	Quartz	1064	Y
JSD-D28-T4	28	4	Quartz	1064
JSD-D30-T1.5	30	1.5	Quartz	1064	Y
JSD-D30-T5	30	5	Quartz	950-1070
JSD-D32-T4	32	4	Quartz	950-1070	Y
JSD-D34-T3	34	3	Quartz	1064
JSD-D34-T5	34	5	Quartz	1064	Y
JSD-D35-T1.5	35	1.5	Quartz	1064
JSD-D35-T4	35	4	Quartz	1064	Y
JSD-D36-T5	36	5	Quartz	1064
JSD-D37-T7	37	7	Quartz	1064	Y
JSD-D38-T2	38	2	Quartz	1064
JSD-D40-T3	40	3	Quartz	950-1070	Y
JSD-D42-T9	42	9	Quartz	950-1070
JSD-D55-T1.5	55	1.5	Quartz	950-1070	Y
