V98 small electrical cable manufacturing machine made in china
Specifications
Print Lines | 1-4 lines (4 x 4 dots) |
Dot Matrix | figure and letter 5 x 5, 5 x 7, 8 x 10, 8 x 12, 12 x 16, 16 x 16, 24 x 24, and user-defined in 32 x 32 |
Memory | 1000 message, 1000 graphics |
Print Speed | 1,400 character per second (5 x 7 dots) |
Letter Height | 1-20mm |
Operating Interface | Chinese, English |
Print Objects | English chracter, Arabic number, date, time, batch numbers and logo, trademark, text |
Material | metal, plastic, glass, woode, tubing, electrical wire, cable etc |
Font Width | up to 9 times |
Nozzle Connection Tube | 3M |
Ink Color | black, blue,red etc |
Consumption of Ink | 70 millions character per litre |
Operating Environment | 5-45 degree centigrade, below 90%(humidity) |
Power Source | AC220V / 380V 50HZ 100AV |

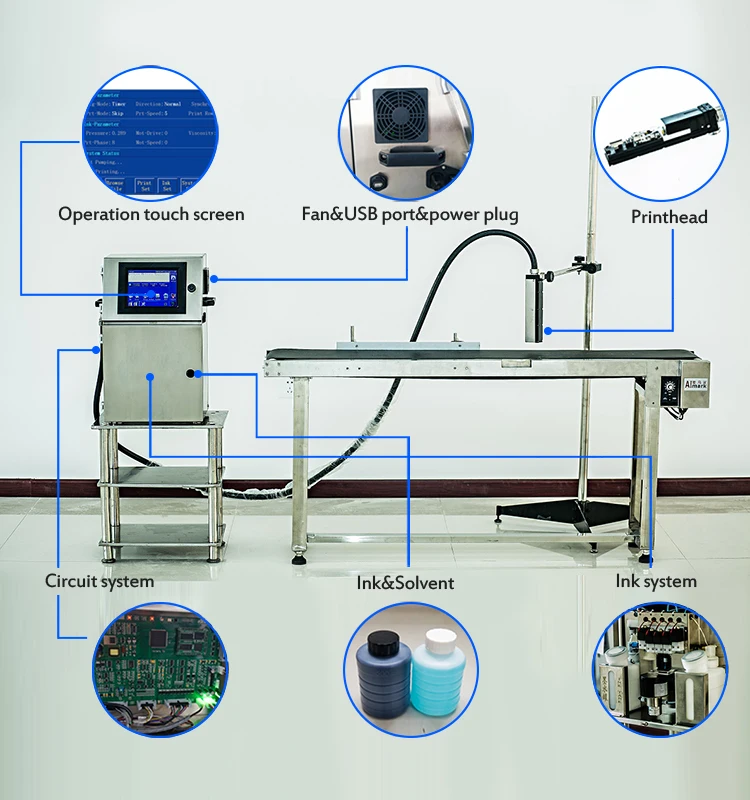

Feature
Quick-dry balck ink used industrial non-contact small character inkjet printers
Print consistently high quality images even on structured and uneven surfaces
Print features include TEXT, DATE, TIME, BATCH NUMBER, LOGO AND TRADEMARK
Easy to be integrated at any position of the production line
User friendly interface and most reliable ink system
32 bit embeded CPU, large memory, and the 8.4'' TFT bright clear touch screen
Multitask system, printing and editting at the same time
Hydraulic system
Full automatic viscosity control and pressure control
Diaphragm pumps with reliability, longer life, low maintenance cost than gear pump
Electronic control system completely separated design from hydraulic system
Print Head
- Compatible design, maintenance friendly
- Automatic ink stream on when start up and ink stream suck back when turn off
- Nozzle size: 58 μm standard, 52 to 65 μm optional
- Easily accessible and can be installed in any position
- Distance from print head to print surface 1mm~30mm
Application
