Feature:

Without wiring
I / O resources occupy less (only 4 ports)
High current (up to 2A)
Back EMF Protection
Easy to operate
On-board motor speed and direction indicator LED
Board prototype (prototype) District
The so-called band prototype (prototype) District, leaving an empty area to let arduino fans to extend some other functions.
This Arduino motor driver board can control two DC motors. L298P H-bridge chips per Ardumoto can drive currents up to 2A. Drive power and Arduino control board is the same VIN, on-board the blue and yellow LEDs to indicate the driving direction and speed, all the drive line has a back electromotive force protection diode.
Onboard an external motor drive power terminals, support 3.3 or 5V logic level.
I / O footprint (only 4 ports) to drive two motors with a PWM speed control. There are four LEDs to indicate the motor speed and direction, without the need for dedicated database-driven documents.

Specification:

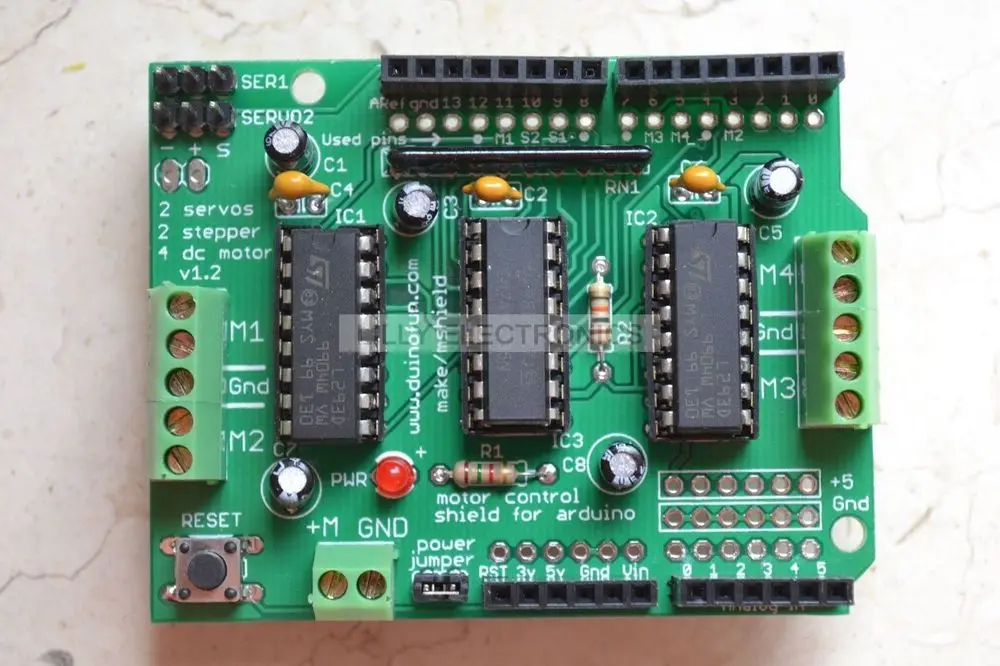

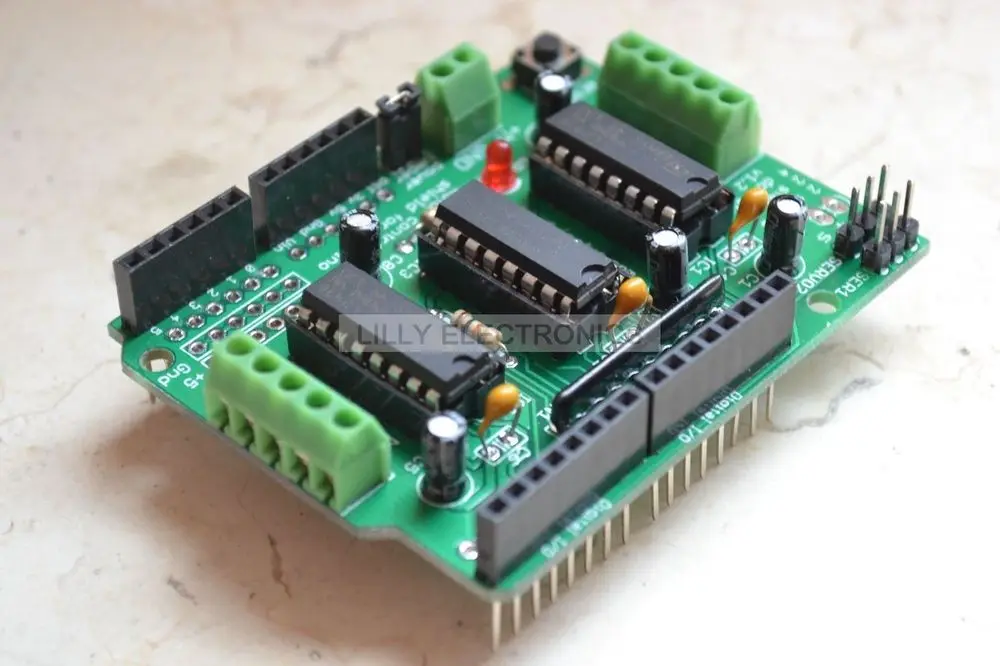

This is a common DC motor driver module, and 293D chip current DC motor driver chip. Pin is made of Arduino compatible, convenient enthusiasts quickly developed based on the Arduino.      2 x5V servo motors (servos) port connected to the Arduino's high-resolution high-precision timer - no jitter!

Up to four bi-directional DC motor and 4-channel PWM speed (about 0.5% resolution)

Up to 2 stepper motor control, single / two-step control, staggered or micro-step and the rotation angle control.

4-channel H-bridge: L293D chip every road and bridge to provide .0.6 A (peak 1.2A) current and with a thermal power protection, with 4.5V to 36V.

Pull-down resistor to ensure that the motor remains stopped on power.

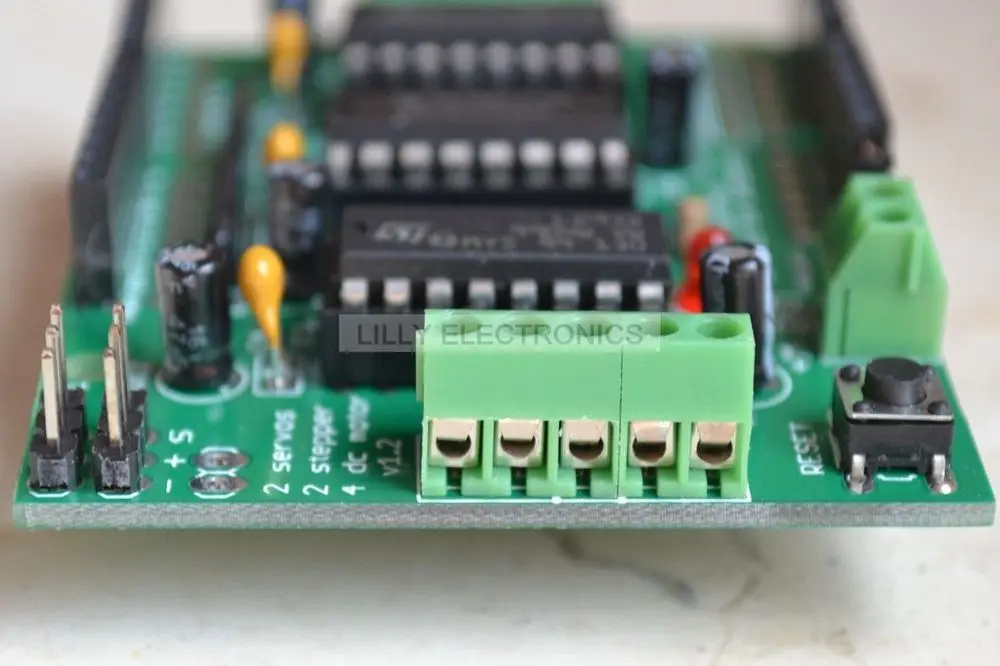

Large terminal terminals make it easier to wire (10 - 22AWG) and power.

With the Arduino reset button.

2 terminal external power supply terminal to ensure the separation of logic and motor drive power.

Compatible with Mega, Diecimila, & Duemilanove.

Provide a full range of spare parts available to think yourself a fan of DIY.

Download easy-to-use Arduino software library rapid project development.

multi-function, easy operation, powerful drive library support, and feature updates.   Driver 4-way DC motors or 2 stepper motor at the same time can drive two servos, the latest the Arduino of UNO, the Arduino Mega 2560

You can match: Drive four DC motors and two servos Drive two DC motors, and all the way stepper motors and two servos Drive two stepper motors and two servos

Application

Arduino beginners, Arduino experimental equipment platform, the Arduino interactive electronic, the Arduino robot.
