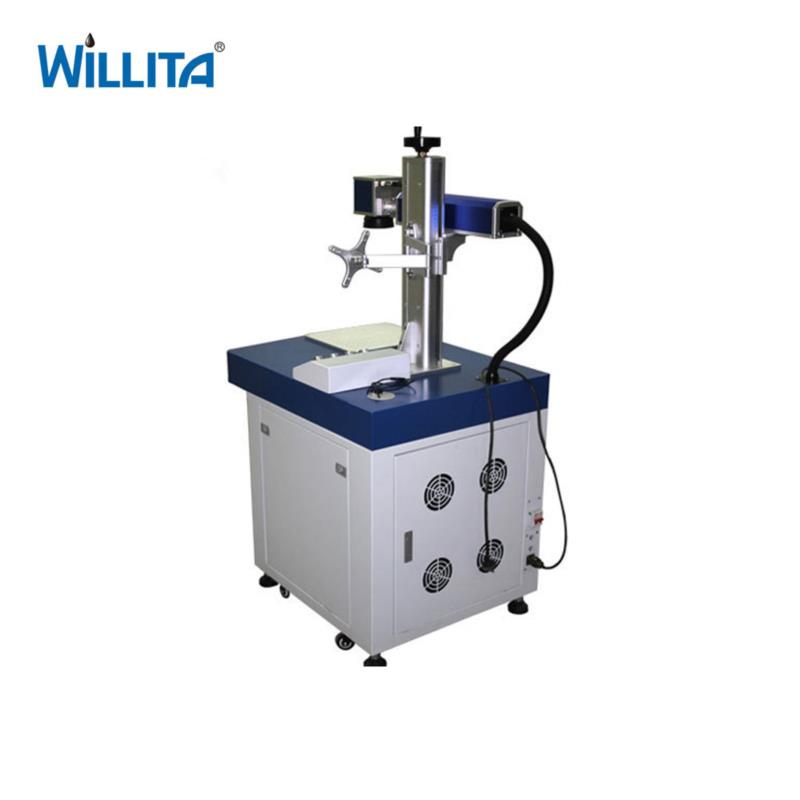

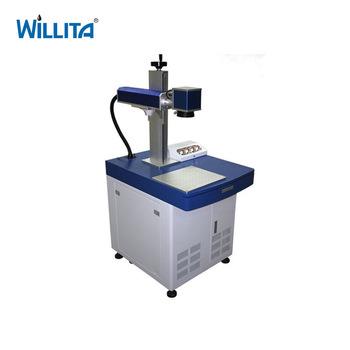

Fiber laser marking printeris the 3thgeneration laser marking machine which is manufactured by the most advanced laser technology in current of the world.
Long life,ultralow power consumption,the conversion efficiency is more than 30%,the unit power of the machine is no more than 0.5kw.
High-speed galvanometer scanning system. Good beam quality, long working life (100,000 hours). Stable performance and maintenance-free.
This model can achieve automatic arrangement and modification of text, logo, symbols ,images, graphics, bar code, two dimensional barcode, serial number automatically increasing, etc.
Technical Parameters
Laser marking Power | 10w | 20w | 30W |
Fiber Beam quality | M2≤1.4 | M2≤1.8 | M2≤1.8 |
Laser Marking speed | ≤7000mm/s | ≤8000mm/s | ≤8000mm/s |
Fiber laser marking Power consumption | 0.5KW | 0.8KW | 1.2KW |
Fiber Laser wavelength | 1064nm | ||
Laser marking Working area | 50x50mm-300x300mm | ||
Fiber Laser Minimum Linewidth | 0.01mm | ||
Laser Marking Repeated precision | ±0.001mm | ||
Fiber laser coolling system | air-cooling | ||
Laser marking Power supply | AC220V/50Hz | ||
laser marking machine Dimension | 800x680x1200mm | ||
Materials: metal and all kinds of nonmetal materials, high hardness alloy steel, oxide, electroplating vacuum plating, epoxy resin, printing ink, ABS, and other engineering plastic.
Industries: Plastic keypad keys, components of digital product, electronic components, electrical appliances, jewelry, precision machinery, hardware accessories, glasses clocks and watches, qimo accessories, sanitary ware, communication products, medical devices, integrated circuit (IC), building materials, pipe materials, more suitable for high demand of .accuracy, speed and depth to the products.
